Our products are suitable for all industrial, Transportation, Marine, Utility and Automotive Applications.

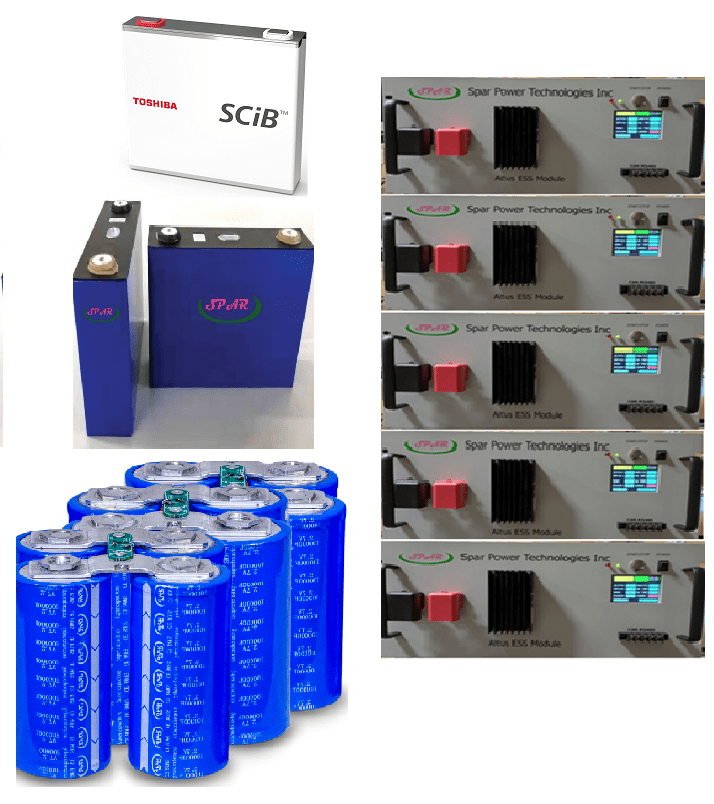

The Basic Building Block is 2.7 Vdc, 100,000 farad super-capacitor, connected in series and parallel to make 12, 24 and 48 Vdc modules at various energy storage up-to 5.1kWh, per module.These capacitors can be operated in extreme weather conditions, -40 deg. C to +65 Deg. C
Altus-500, 12 Vdc modules consisting of 6,12, 18 and 24 Capacitors provide 0.51, 1.02, 1.53 and 2.04 kWh energy storage capacities per modules, suitable for Automotive and engine starting applications in an extremely weather conditions, -40 deg. C to +65 Deg. C
Altus-500, 24 and 48 Vdc Modules Consisting of 20, 40 and 60 super-capacitors provide 1.7, 3.4 and 5.1 kWh energy storage capacities per modules.
Up-to 10 modules of Altus-500 rated at 24 and 48Vdc can be installed in a 19 inch standard IT rack and connected in series and parallel to suit the required voltage end energy levels.
Large Systems can be shipped in 20 or 40 foot ISO containers with complete factory tested ready to install at site. 20 foot container can hold up-to 500kWh energy modules and all required DC/DC and AC/DC converters.
